UTB bk
| Part No. | 56100 |
| EAN | 4251269335464 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 0 |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Color | black |
-
Products
?
Multi Cable Transit for Cables with Connectors
?

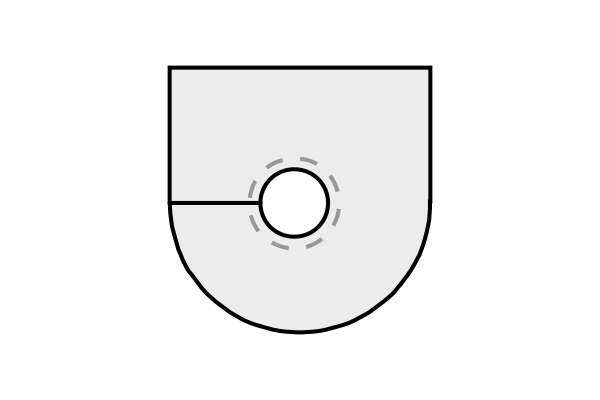

UT | Split U-Shaped Cable Grommet
UT | Split U-Shaped Cable Grommet
for Cables with Connectors, Tool-Less Assembly / up to IP54

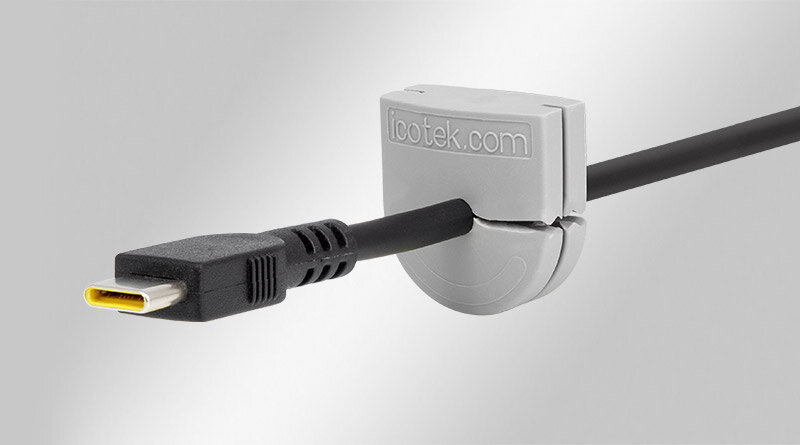

The UT cable grommet is an U-shaped cable bushing and makes it possible to route single pre-connectorized cables as well as standard cables with a diameter range of 4 to 11 mm into enclosures.
The wall thickness of the enclosure can be from 1 to 4 mm.

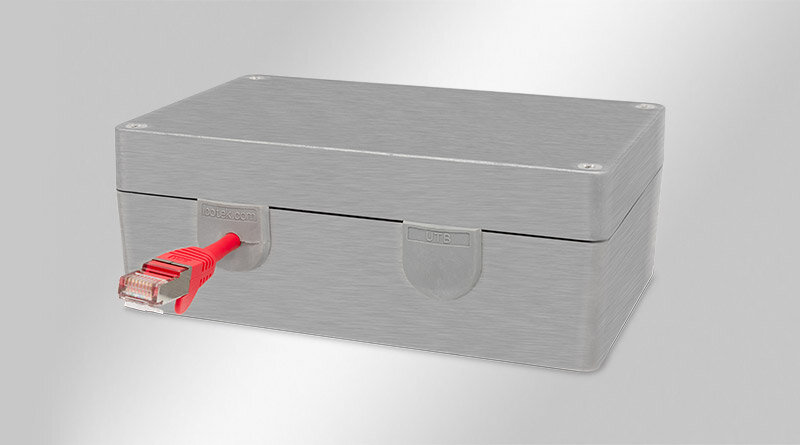

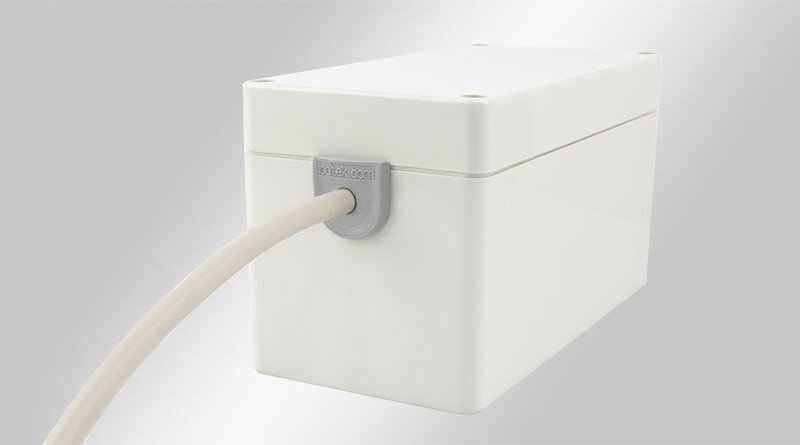

The UT is a split grommet that can be mounted around the cable. The UT grommet is ideal for installation on the lower part of the enclosure.

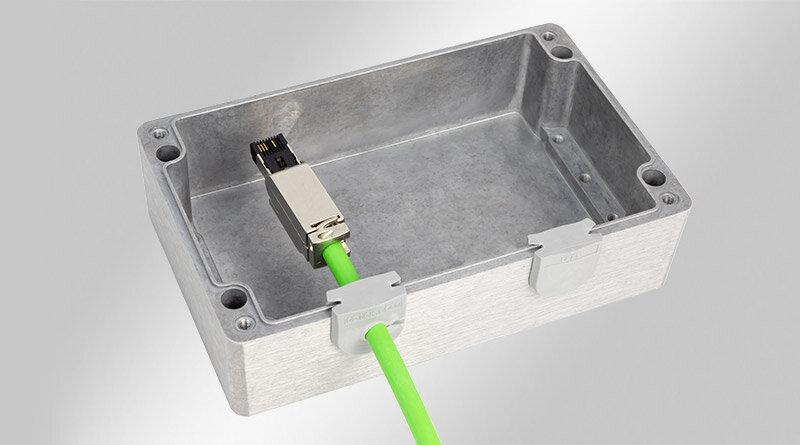

After fitting the grommet with the cable, it is inserted into the recommended cut-out. The enclosure cover is then placed on the lower part.
By screwing the cover tightly on the enclosure, pressure acts on the cable grommet and, depending on the properties of the enclosure, enables a sealing rate of up to IP54.
Specifications
| IP rating (EN 60529) | IP54 |
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -40 C° to 100 C° |
| Material | Elastomer |
| Mounting options | Snap-in |
| Properties | UV-resistant, silicone free, halogen free |
Advantages & Benefits

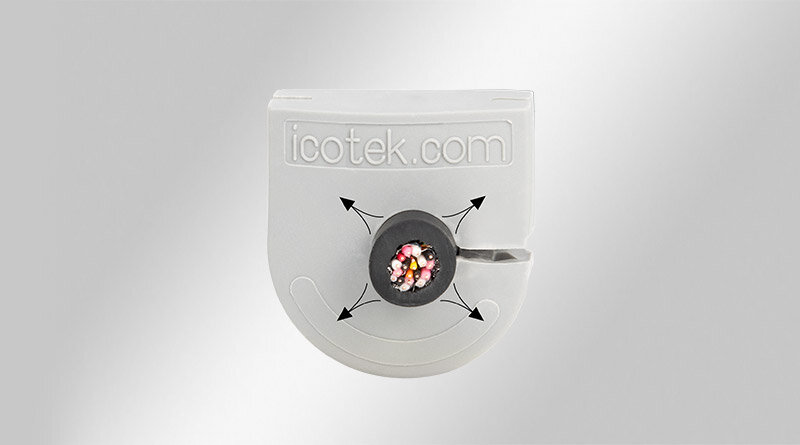

- Allows the routing and sealing of cables that can vary in diameter up to 2 mm
- Simple, tool-less assembly
- Can be used for cable diameters from 4 to 11mm
- Protection class up to IP54 (if the grommet is selected correctly and depending on the enclosure properties)
- Cost-effective solution
Product types & Sizes
UTB gy
| Part No. | 56000 |
| EAN | 4251269335396 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 0 |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Color | gray (similar RAL 7035) |
UT 4-6 bk
| Part No. | 56101 |
| EAN | 4251269335471 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 1 |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Color | black |
| Clamping range | 1 x 4 - 6 mm |
UT 4-6 gy
| Part No. | 56001 |
| EAN | 4251269335402 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 1 |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Color | gray (similar RAL 7035) |
| Clamping range | 1 x 4 - 6 mm |
UT 5-7 bk
| Part No. | 56102 |
| EAN | 4251269335488 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 1 |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Color | black |
| Clamping range | 1 x 5 - 7 mm |
UT 5-7 gy
| Part No. | 56002 |
| EAN | 4251269335419 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 1 |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Color | gray (similar RAL 7035) |
| Clamping range | 1 x 5 - 7 mm |
UT 6-8 bk
| Part No. | 56103 |
| EAN | 4251269335495 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 1 |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Color | black |
| Clamping range | 1 x 6 - 8 mm |
UT 6-8 gy
| Part No. | 56003 |
| EAN | 4251269335426 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 1 |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Color | gray (similar RAL 7035) |
| Clamping range | 1 x 6 - 8 mm |
UT 7-9 bk
| Part No. | 56104 |
| EAN | 4251269335501 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 1 |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Color | black |
| Clamping range | 1 x 7 - 9 mm |
UT 7-9 gy
| Part No. | 56004 |
| EAN | 4251269335433 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 1 |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Color | gray (similar RAL 7035) |
| Clamping range | 1 x 7 - 9 mm |
UT 8-10 bk
| Part No. | 56105 |
| EAN | 4251269335518 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 1 |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Color | black |
| Clamping range | 1 x 8 - 10 mm |
UT 8-10 gy
| Part No. | 56005 |
| EAN | 4251269335440 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 1 |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Color | gray (similar RAL 7035) |
| Clamping range | 1 x 8 - 10 mm |
UT 9-11 bk
| Part No. | 56106 |
| EAN | 4251269335525 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 1 |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Color | black |
| Clamping range | 1 x 9 - 11 mm |
UT 9-11 gy
| Part No. | 56006 |
| EAN | 4251269335457 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 1 |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Color | gray (similar RAL 7035) |
| Clamping range | 1 x 9 - 11 mm |
UT-DT 1 bk
| Part No. | 56120 |
| EAN | 4251269336553 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 1 |
| Color | black |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Clamping range | 1 x 1 - 11 mm |
UT-DT 1 gy
| Part No. | 56020 |
| EAN | 4251269335945 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 1 |
| Color | gray (similar RAL 7035) |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Clamping range | 1 x 1 - 11 mm |
UT-DT 4 bk
| Part No. | 56121 |
| EAN | 4251269336560 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 4 |
| Color | black |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Clamping range | 1 x 1 - 3.2 mm 1 x 1 - 4.2 mm 2 x 1 - 6.4 mm |
UT-DT 4 gy
| Part No. | 56021 |
| EAN | 4251269335952 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 4 |
| Color | gray (similar RAL 7035) |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Clamping range | 1 x 1 - 3.2 mm 1 x 1 - 4.2 mm 2 x 1 - 6.4 mm |
UT-DT 5 bk
| Part No. | 56122 |
| EAN | 4251269336577 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 5 |
| Color | black |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Clamping range | 2 x 1 - 3.2 mm 3 x 1 - 5.2 mm |
UT-DT 5 gy
| Part No. | 56022 |
| EAN | 4251269335969 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 5 |
| Color | gray (similar RAL 7035) |
| Length | 23.5 mm |
| Width | 23 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1 mm |
| For max. wall thickness | 4 mm |
| Clamping range | 2 x 1 - 3.2 mm 3 x 1 - 5.2 mm |
