Our latest products and product range extensions.

Split Cable Entry Frame with Han 3A / Han 4A Connection

11/19/2024

The modular interface system (MIS) is a split cable entry for cables with and without connectors in combination with industrial connectors 3A or 4A. An industrial connector of size 3A or 4A can be plugged directly onto the frame. Cables with a diameter of 1 to 15 mm can be routed, sealed and strain relieved in accordance with EN 62444.

Modular Stackable Cable Clamp / Cable Cleat for Cable Diameters 10 - 55 mm

10/08/2024

The modular stackable cable clamp MSMC is used for easy, quick and secure fastening of cables, pipes and other cylindrical components. The variable clamping range is up to 16 mm. The great advantage of this cable cleat is that it can be easily extended by stacking or baying.

Cover Panels for Thread Extensions & Cable Entry Systems

09/03/2024

Core drills with diameters from 80 mm are very often used to make wall openings in cleanrooms, cold rooms, buildings, etc. In order to be able to use the TE thread extensions, metric cable entry plates & split cable glands for such wall openings, the AB-M cover panels are used.

U-shaped Multi-Membrane Cable Grommet
for Cables without Connectors

09/03/2024

The UT-DT membrane cable grommet is used to route non-assembled cables. It can be used wherever the use of the UT cable grommets is possible. Its use allows the density of the routed cables to be increased.

90° Cable Entry Adapter for Split Cable Transit Frames & Multi-Membrane Cable Entry Plates

06/11/2024

KEA is a multifunctional adapter for various cable entry systems. The adapter allows cables to be routed at a 90° angle and sealed with up to IP65.

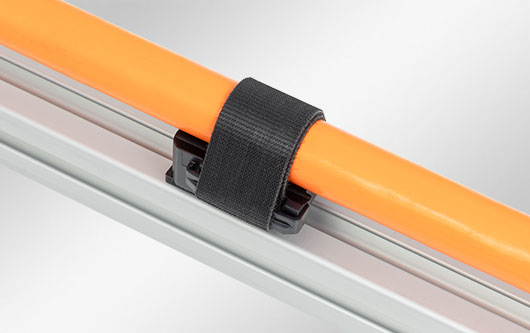

Hook-And-Loop Tape Holders with Twist Lock Base for 80/20 Profiles

05/14/2024

The icotek "KBH" hook-and-loop tape holders are used to fix icotek hook-and-loop tapes and cable ties. Numerous product variants offer a wide range of mounting and cable routing options. The range of hook-and-loop tape holders has recently been expanded to include additional variants that allow the user a quick and tool-less 90° twist lock installation on 80/20 strut profiles in sizes 25 and 40.

Split U-Shaped Cable Grommet for Cables with Connectors

04/09/2024

The UT cable grommet is an U-shaped cable bushing and makes it possible to route single pre-connectorised cables as well as standard cables with a diameter range of 4 to 11 mm into enclosures. The wall thickness of the enclosure can be from 1 to 4 mm.

IMAS-CONNECT? Adapter Grommet for Keystone Jacks Now Available with Protection Cover

03/12/2024

With the IMAS-CONNECT? adapter grommet system, you can easily use your split cable entry as an individual interface for connectors. There is no need for a separate cut-out for keystone jacks, circular connectors, etc. This reduces not only the installation time, but also the space required on the mounting surface. If a pre-assembled Keystone jack is not used directly, the protection cover with integrated seal offers reliable protection against splash water and dust.

Expansion of the KEL-DPZ-KX/KL Cable Entry Plate Series

02/26/2024

The KEL-DPZ-KX/KL cable entry plate, designed for Rittal KX and KL enclosures, has been expanded with five new configurations. By mounting the KEL-DPZ-KX/KL cable entry plate on the Rittal KX or KL enclosure (instead of the Rittal flange plate), a cable entry for a large number of cables with different diameters can be created in a very short time.

Split Bulkhead for 90° Cable Transit

10/23/2023

The new bulkhead KEL-FW is perfect for routing cables at a 90° angle over a large bending radius (max. 150 mm). Cables with and without connectors up to a diameter of 35 mm can be routed and strain-relieved according to EN 62444. Retrofitting and maintenance can be carried out quickly and easily.

Multi Cable Transit for Food Tech Applications

09/26/2023

The KEL-ER-BL is a split cable entry system for cables with and without connectors. The split cable transit frames KEL-ER-BL in the signal colour blue is preferably used in the area of food packaging and processing machines where there is no direct contact with food.

Brush Strips for 10" and 19" Server Racks

09/01/2023

This brush strip from icotek is suitable for installation in 10" or 19" server racks from various manufacturers. The special feature of the BES brush strip is that the integrated spring locks allow tool-free assembly and disassembly. All that is needed is to release the locking mechanism on both sides.

Hook-and-Loop Tape Holders for Secure Cable Routing

09/01/2023

Universal screw mounting, snap mounting on top hat rails or versatile 90° twist lock mounting on Rittal VX25 / AX punched sections, 23 x 23 mm mounting rails, 19" rack systems or strut profiles from Bosch Rexroth, MiniTec, MayTec and item.

Punches for CONFiX? Bulkhead Fittings

07/03/2023

These punches can be used to punch the special cutout shapes for the CONFiX? bulkhead fittings. For max. 2 mm stainless steel (V2A versions), sheet steel, aluminium and plastic. The punches are suitable for the hand hydraulic punch driver and the hydraulic foot pump.

TE Thread Extension for Cable Glands and Cable Entry Plates

03/21/2023

Custom made thread extension for cable glands and cable entry plates with metric threads M32 / M50. Especially suitable for sandwich panels of all wall thicknesses.

DB Distribution Box - The 360° Cable Transit

11/02/2022

With the new distribution box, centrally routed cables can be distributed 360° in all desired directions. Cables with and without connectors can be routed, sealed with IP54 and strain relieved in accordance with EN 62444.

Cable Transit Frame KEL-E Now Available for 1 Grommet!

10/11/2022

With the KEL-E1 size, up to 4 cables (with quadruple grommets) can now be routed in a small space, sealed with IP54 and strain-relieved according to EN 62444.

Flexible Cable Entry Grommets for Cable Diameters up to 52 mm

05/17/2022

With the KEL-SCDP-TR cable entry grommet, single cables, hoses, and conduits can be routed and sealed at a rating of IP65. Its unique advantage is the large sealing range. The KEL-SCDP-TR grommets have a thread to fit in metric cut-outs from M25 to M63. Thus cut-outs for metric cable glands can be used.

Discover the New Configurations of the Round Cable Entry Plate KEL-DP

04/05/2022

The KEL-DP success story continues! Due to recurring inquiries, we have decided to implement the KEL-DP 16 round as a new size in 3 different configurations and to add a new configuration to the KEL-DP 20 round. With the KEL-DP 16|1 and the KEL-DP 20|1, individual cables with diameters of up to 8 mm / 14 mm can now be routed and sealed with IP65.

Cable Grommets with Peelable Membrane Rings Now Available in Small

04/05/2022

The KT-SC small cable grommet is based on the small KT grommet and enables flexible routing and sealing (IP54) of electrical cables and pneumatic hoses with diameters from 4 - 12 mm.

Split 90° Cable Transit Frame with IP65 Rated Protection

03/08/2022

The new cable transit frame KEL-FG-ER with a split flange enclosure is the perfect solution for a 90° feed-in of cables with and without connectors. Due to the integrated seal, a protection class of up to IP65 is provided.

The New Multi-Range Cable Grommet KTMBS with a Variable Clamping Range

11/17/2021

The new KTMBS cable grommets allow an even easier and much more flexible cable entry. Since one grommet size covers several clamping areas, cables of different diameters can be routed and sealed by using one grommet.

The New Tool-Less Cable Transit KEL-FA

11/17/2021

The KEL-FA series is a compact system for routing and sealing cables with and without connectors, as well as hoses and pneumatic cables. After the frame has been equipped with the KT grommet system, the cover is put on and the two clamping levers are locked with the lower part by pressing them down. The twist-proof construction of the KEL-FA enables intuitive assembly.

Hygienic Cable Entry Plates - Now Available in Rectangular Size

10/04/2021

The hygienic cable entry plates KEL-DPU-HD have been developed for installation in food processing and packaging machinery. The KEL-DPU-HD is particularly characterized by its solid robust frame and the increased strain relief of the routed cables. The KEL-DPU-HD 24 matches exactly the cut-out dimensions of 24-pin standard industrial connectors.

Rail Cutter for DIN TS35 Rails & Bus Bars

09/24/2021

The DIN-RC cutter cuts various DIN TS35 rails & bus bars with little effort and accurately. The cut is clean and free of burrs; there is no waste.

Cable Entry Systems for the Use in Cleanrooms

09/24/2021

A cleanroom is a room that has an extremely low concentration of airborne particles. Airborne particles are all particles and substances that are suspended in the air and for the most part cannot be seen with the naked eye. All icotek cable entry systems for the cleanroom tested and certified by the Fraunhofer IPA are suitable and certified for class 1 in accordance with ISO 14644-1!

Split Flange Plates with Brush Strips

08/16/2021

Two-part flange plates, each with two brush strips arranged in opposite directions, enable the routing of cables already pre-assembled with connectors and prevent dirt from entering the enclosure. The flange plates are designed for Rittal enclosures of type AX.

Brush Strip with Clamping Profile for Numerous Enclosure Manufacturers

06/10/2021

The brush strips with clamping profile are available in individual lengths as well as suitable for control panels from Rittal, nVent Hoffman (incl. ELDON), H?wa, Schneider Electric and ETA.

Snap-On Mounting Frame Now Even More Versatile!

06/01/2021

The mounting frames KEL-SNAP enable a quick and tool-less assembly of cable entry frames. Due to its divisibility, the new mounting frame KEL-SNAP-S can also be installed subsequently. In addition, there is no need to thread the cables through the frame.

EMC Shield Clamps on Ground Straps with or without Integrated Cable Fixing Function

04/08/2021

The ground straps are fitted with a shield clamp at one end. This solution is used where space is limited.

Just One Click Away:  The New Snap-In Cable Entry Plates

03/29/2021

Now the assembly is even easier: the new variant of the proven cable entry plate KEL-DPZ is snapped into the cut-out directly from the front. This significantly reduces the assembly time. Alternatively, the new variant can be fastened with a locknut.

Smart Strain Relief and EMC Shielding on the C-Rail

03/09/2021

The cable clamps are characterized by a large variety of clamping areas from 6 to 50 mm. The suitable EMC shield clamp LFC contacts the cable shield directly on the C-rail.

Shipbuilding: icotek Products Now Have RINA Approval

02/03/2021

Numerous icotek products such as cable entry systems and EMC solutions have now received RINA approval. This approval is a prerequisite for installation on ships classified by RINA. The RINA test criteria are almost identical to those of DNV (formerly Germanischer Lloyd), whose approval also holds a large number of our products. Many shipyards accept both DNV and RINA equally.

Adapter Grommets for Square Flanges

01/19/2021

With the new IMAS-CONNECT? adapter grommet AT-FL or QT-AT-FL, all modules of a square flange with the dimensions 19.8 x 19.8 mm (M23) can be integrated directly into the cable entry.
