EMC-BTK
| Part No. | 99473 |
| EAN | 4251269319549 |
| Package quantity | 5 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
-
Products
?
Cable grommets
?
EMC-KT | EMC cable grommets
EMC-KT | EMC cable grommets
for shield diameters 2 - 33 mm

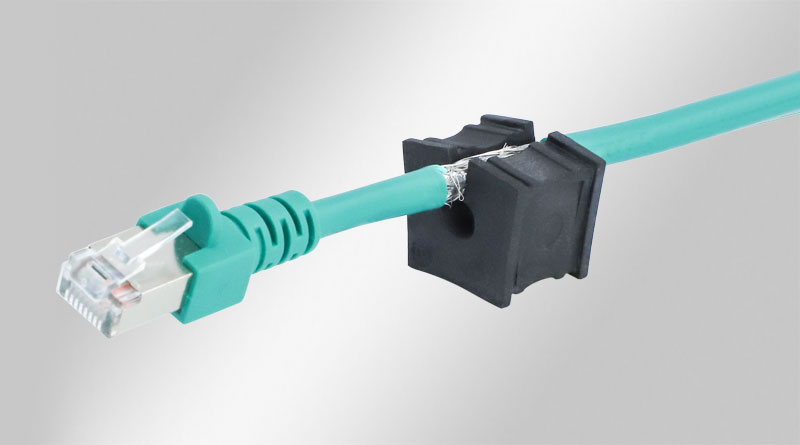

The cable grommets type EMC-KT are made of a very conductive elastomer. Thus, disturbances are dissipated from the cable shield directly via the grommet, the frame and the flat gasket. This ensures full-area protection against field-bound interference!
Suitable for:

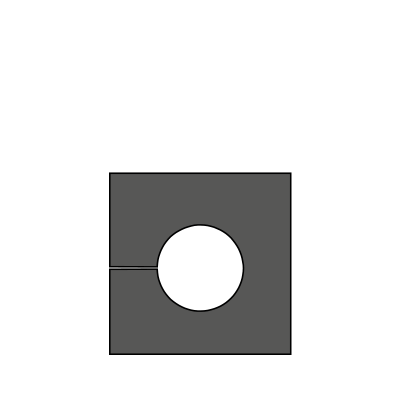

The model range EMC-KT small is designed for cable diameters from 2 to 16 mm. Cable grommets EMC-KT large accept a wide range of cable diameters from 13 to 33 mm.

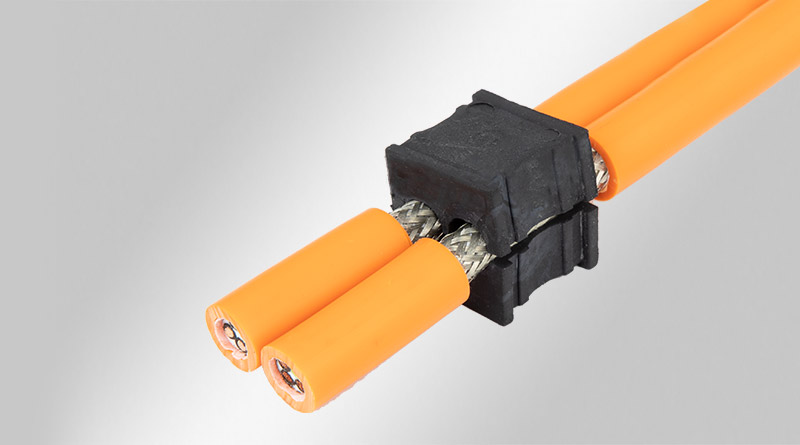

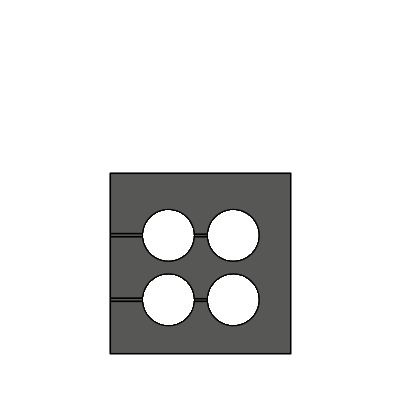

When using double or quadruple grommets the cable density of EMC cable entry frames and cable glands can be greatly increased.
When installing the small grommets in multiple rows, the flat sides should be facing each other.
Specifications
| Flame class | UL94-HB |
| Operating temperature | -30 C° to 80 C° |
| Material | Elastomer, conductive |
| Properties | silicone free, halogen free |
Advantages & benefits
- Contacting the cable shield over 360°
- EMC grommets made entirely from conductive elastomer
- Enable routing of pre-terminated cables through cable entry frames and split cable glands
- Available for a large range of cable diameters
- Greatly increased cable density when using double or quadruple grommets
Product types & sizes
EMC-KT 3
| Part No. | 99460 |
| EAN | 4251269319419 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 4 mm |
| Clamping range | 1 x 3 - 4 mm |
EMC-KT 2
| Part No. | 99459 |
| EAN | 4251269324772 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 2 mm |
| Max. shield diam. | 3 mm |
| Clamping range | 1 x 2 - 3 mm |
EMC-KT 4
| Part No. | 99461 |
| EAN | 4251269319426 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 4 mm |
| Max. shield diam. | 5 mm |
| Clamping range | 1 x 4 - 5 mm |
EMC-KT 5
| Part No. | 99462 |
| EAN | 4251269319433 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 5 mm |
| Max. shield diam. | 6 mm |
| Clamping range | 1 x 5 - 6 mm |
EMC-KT 6
| Part No. | 99463 |
| EAN | 4251269319440 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 6 mm |
| Max. shield diam. | 7 mm |
| Clamping range | 1 x 6 - 7 mm |
EMC-KT 7
| Part No. | 99464 |
| EAN | 4251269319457 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 7 mm |
| Max. shield diam. | 8 mm |
| Clamping range | 1 x 7 - 8 mm |
EMC-KT 8
| Part No. | 99465 |
| EAN | 4251269319464 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 9 mm |
| Clamping range | 1 x 8 - 9 mm |
EMC-KT 9
| Part No. | 99466 |
| EAN | 4251269319471 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 9 mm |
| Max. shield diam. | 10 mm |
| Clamping range | 1 x 9 - 10 mm |
EMC-KT 10
| Part No. | 99467 |
| EAN | 4251269319488 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 10 mm |
| Max. shield diam. | 11 mm |
| Clamping range | 1 x 10 - 11 mm |
EMC-KT 11
| Part No. | 99468 |
| EAN | 4251269319495 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 11 mm |
| Max. shield diam. | 12 mm |
| Clamping range | 1 x 11 - 12 mm |
EMC-KT 12
| Part No. | 99469 |
| EAN | 4251269319501 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 12 mm |
| Max. shield diam. | 13 mm |
| Clamping range | 1 x 12 - 13 mm |
EMC-KT 13
| Part No. | 99470 |
| EAN | 4251269319518 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 13 mm |
| Max. shield diam. | 14 mm |
| Clamping range | 1 x 13 - 14 mm |
EMC-KT 14
| Part No. | 99471 |
| EAN | 4251269319525 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 14 mm |
| Max. shield diam. | 15 mm |
| Clamping range | 1 x 14 - 15 mm |
EMC-KT 15
| Part No. | 99472 |
| EAN | 4251269319532 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 15 mm |
| Max. shield diam. | 16 mm |
| Clamping range | 1 x 15 - 16 mm |
EMC-KT 2|2
| Part No. | 99500 |
| EAN | 4251269332265 |
| Package quantity | 5 |
| For max. no. of cables | 2 |
| Colour | black |
| For cable type | Round cable |
| Min. shield diam. | 2 mm |
| Max. shield diam. | 2 mm |
| Clamping range | 2 x 2 - 2 mm |
EMC-KT 2|3
| Part No. | 99501 |
| EAN | 4251269332272 |
| Package quantity | 5 |
| For max. no. of cables | 2 |
| Colour | black |
| For cable type | Round cable |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 3 mm |
| Clamping range | 2 x 3 - 3 mm |
EMC-KT 2|4
| Part No. | 99493 |
| EAN | 4251269323560 |
| Package quantity | 5 |
| For max. no. of cables | 2 |
| Colour | black |
| For cable type | Round cable |
| Min. shield diam. | 4 mm |
| Max. shield diam. | 4 mm |
| Clamping range | 2 x 4 - 4 mm |
EMC-KT 2|5
| Part No. | 99502 |
| EAN | 4251269332289 |
| Package quantity | 5 |
| For max. no. of cables | 2 |
| Colour | black |
| For cable type | Round cable |
| Min. shield diam. | 5 mm |
| Max. shield diam. | 5 mm |
| Clamping range | 2 x 5 - 5 mm |
EMC-KT 2|6
| Part No. | 99503 |
| EAN | 4251269332296 |
| Package quantity | 5 |
| For max. no. of cables | 2 |
| Colour | black |
| For cable type | Round cable |
| Min. shield diam. | 6 mm |
| Max. shield diam. | 6 mm |
| Clamping range | 2 x 6 - 6 mm |
EMC-KT 4|2
| Part No. | 99504 |
| EAN | 4251269332302 |
| Package quantity | 5 |
| For max. no. of cables | 4 |
| Colour | black |
| For cable type | Round cable |
| Min. shield diam. | 2 mm |
| Max. shield diam. | 2 mm |
| Clamping range | 4 x 2 - 2 mm |
EMC-KT 4|3
| Part No. | 99505 |
| EAN | 4251269332319 |
| Package quantity | 5 |
| For max. no. of cables | 4 |
| Colour | black |
| For cable type | Round cable |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 3 mm |
| Clamping range | 4 x 3 - 3 mm |
EMC-KT 4|4
| Part No. | 99506 |
| EAN | 4251269332326 |
| Package quantity | 5 |
| For max. no. of cables | 4 |
| Colour | black |
| For cable type | Round cable |
| Min. shield diam. | 4 mm |
| Max. shield diam. | 4 mm |
| Clamping range | 4 x 4 - 4 mm |
EMC-KT 4|5
| Part No. | 99507 |
| EAN | 4251269332333 |
| Package quantity | 5 |
| For max. no. of cables | 4 |
| Colour | black |
| For cable type | Round cable |
| Min. shield diam. | 5 mm |
| Max. shield diam. | 5 mm |
| Clamping range | 4 x 5 - 5 mm |
EMC-BTK
| Part No. | 99473 |
| EAN | 4251269319549 |
| Package quantity | 5 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
EMC-BTG
| Part No. | 99495 |
| EAN | 4251269319648 |
| Package quantity | 5 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |

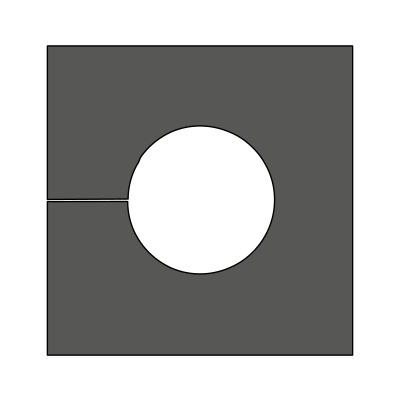

EMC-KT 16
| Part No. | 99475 |
| EAN | 4251269319556 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 16 mm |
| Max. shield diam. | 17 mm |
| Clamping range | 1 x 16 - 17 mm |
EMC-KTG 15
| Part No. | 99498 |
| EAN | 4251269324246 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 15 mm |
| Max. shield diam. | 16 mm |
| Clamping range | 1 x 15 - 16 mm |
EMC-KTG 14
| Part No. | 99497 |
| EAN | 4251269324239 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 14 mm |
| Max. shield diam. | 15 mm |
| Clamping range | 1 x 14 - 15 mm |
EMC-KTG 13
| Part No. | 99496 |
| EAN | 4251269324222 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 13 mm |
| Max. shield diam. | 14 mm |
| Clamping range | 1 x 13 - 14 mm |
EMC-KT 17
| Part No. | 99476 |
| EAN | 4251269319563 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 17 mm |
| Max. shield diam. | 18 mm |
| Clamping range | 1 x 17 - 18 mm |
EMC-KT 18
| Part No. | 99477 |
| EAN | 4251269319570 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 18 mm |
| Max. shield diam. | 19 mm |
| Clamping range | 1 x 18 - 19 mm |
EMC-KT 19
| Part No. | 99478 |
| EAN | 4251269319587 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 19 mm |
| Max. shield diam. | 20 mm |
| Clamping range | 1 x 19 - 20 mm |
EMC-KT 20
| Part No. | 99479 |
| EAN | 4251269319594 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 20 mm |
| Max. shield diam. | 21 mm |
| Clamping range | 1 x 20 - 21 mm |
EMC-KT 21
| Part No. | 99480 |
| EAN | 4251269319600 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 21 mm |
| Max. shield diam. | 22 mm |
| Clamping range | 1 x 21 - 22 mm |
EMC-KT 22
| Part No. | 99481 |
| EAN | 4251269319617 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 22 mm |
| Max. shield diam. | 23 mm |
| Clamping range | 1 x 22 - 23 mm |
EMC-KT 23
| Part No. | 99482 |
| EAN | 4251269319624 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 23 mm |
| Max. shield diam. | 24 mm |
| Clamping range | 1 x 23 - 24 mm |
EMC-KT 24
| Part No. | 99483 |
| EAN | 4251269319631 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 24 mm |
| Max. shield diam. | 25 mm |
| Clamping range | 1 x 24 - 25 mm |
EMC-KT 25
| Part No. | 99484 |
| EAN | 4251269323836 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 25 mm |
| Max. shield diam. | 26 mm |
| Clamping range | 1 x 25 - 26 mm |
EMC-KT 26
| Part No. | 99485 |
| EAN | 4251269323843 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 26 mm |
| Max. shield diam. | 27 mm |
| Clamping range | 1 x 26 - 27 mm |
EMC-KT 27
| Part No. | 99486 |
| EAN | 4251269323850 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 27 mm |
| Max. shield diam. | 28 mm |
| Clamping range | 1 x 27 - 28 mm |
EMC-KT 28
| Part No. | 99487 |
| EAN | 4251269323867 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 28 mm |
| Max. shield diam. | 29 mm |
| Clamping range | 1 x 28 - 29 mm |
EMC-KT 29
| Part No. | 99488 |
| EAN | 4251269323874 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 29 mm |
| Max. shield diam. | 30 mm |
| Clamping range | 1 x 29 - 30 mm |
EMC-KT 30
| Part No. | 99489 |
| EAN | 4251269323881 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 30 mm |
| Max. shield diam. | 31 mm |
| Clamping range | 1 x 30 - 31 mm |
EMC-KT 31
| Part No. | 99490 |
| EAN | 4251269323898 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 31 mm |
| Max. shield diam. | 32 mm |
| Clamping range | 1 x 31 - 32 mm |
EMC-KT 32
| Part No. | 99491 |
| EAN | 4251269323904 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Min. shield diam. | 32 mm |
| Max. shield diam. | 33 mm |
| Clamping range | 1 x 32 - 33 mm |
You haven't found anything suitable yet?
Try the ProductFinderSuitable for:
EMC-KEL-U
Split EMC cable entry frame
Conductive EMC cable entry frames for cut-outs of heavy industrial connectors. Available as single or double row version.
EMC-KEL-DS
Split EMC cable entry frame, IP55
Conductive EMC cable entry frames for cut-outs of heavy industrial connectors. Protection class IP55.
EMC-KVT-DS
Split EMC cable gland, IP55
Split conductive EMC cable gland with metric thread M32 / M63. Protection class IP55.
You might also be interested in the following products
Shield clamps, single
EMC cable shield clamps, single
EMC cable clamps without mounting feet for an individual assembly via rivet.
Shield clamps for screw mounting
EMC cable shield clamps for screw mounting
EMC cable clamps for direct mounting via screws, e.g. on metal sheets.
Shield clamps for 35 mm top hat DIN rails
EMC cable shield clamps for 35 mm top hat DIN rails
EMC cable clamp for snap-on mounting on 35 mm top hat DIN rails.
Shield clamps for bus bars
EMC cable shield clamps for bus bars
EMC cable clamps for snap-on mounting on 10 × 3 mm bus bars.
CONFiX? WST
Split corrugated conduits for cables with connectors
Split cable conduit for routing of pre-terminated cables.
MP
Modular gland plates, IP54
Modular gland plate system for mounting cable entry components in enclosure bases, roofs and divider panels. Suitable for enclosure base plate KDR-BMP.
Round punches
Round punches
Round knockout punches for cut-outs M16 - M85 and PG 16. Suitable for cable glands and round cable entry plates.
