Split cable entry frame for the food industry, IP64/IP65
Food industry cable entry frames for standard cut-outs of heavy industrial connectors. Available as single or double row version.
? KEL-ER-BL | KEL-ER-BL-E-
Products?Cable entry systems for the food industry
Cable entry systems for the food industry
Hygienic, FDA compliant, sealing with up to IP66 / IP68
With the membrane based hygienic cable entry plates, unterminated cables or pneumatic hoses can be quickly and space-efficiently routed into control cabinets, panels and machines and can be sealed with certified protection classes up to IP66 / IP68 (acc. to EN 60529). Hygienic icotek cable entry plates are cost, space and time saving alternatives to hygienic stainless steel cable glands. Find out more ?
icotek food tech cable entry systems at a glance
Filter products:
Split cable grommets for the food industry, IP64/IP65
Split cable grommets for the food industry, for diameters of 1 to 16 and 16 - 35 mm. Suitable for KEL-ER-BL cable entry frames.
? KT-BL
Heavy duty gland plate, hygienic design, IP66/IP68, FDA compliant
Hygienic heavy duty gland plate with high strain relief and certified protection up to IP66/IP68.
? KEL-DPU-HD
Round gland plate, hygienic design, IP66/IP68, FDA compliant
Round hygienic gland plate with certified sealing IP66/IP68. Metric threads M32-M63.
? KEL-DPZ-HD round

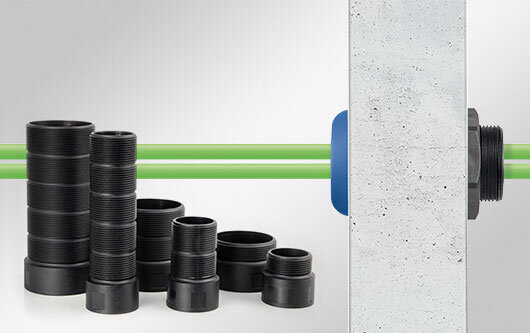

Thread extension for cable glands and cable entry plates, M32 / M50 / M63
Custom made thread extension for cable glands and cable entry plates with metric threads M32 / M50 / M63.
Cover panels for thread extensions & cable entry systems, M32 / M50 / M63
The cover panels have an outer diameter of 150 mm and a centre hole of 32.5 mm, 50.5 mm or 63.5 mm to accommodate the thread extensions, cable entry plates & split cable glands.
? AB-M
Membrane plugs for gland plates, FDA compliant
Plugs for sealing already pierced membranes of gland plates. Also available as detectable version (type ST-B-HDD).
? ST-B-HD | ST-B-HDD
Detectable cable ties & holders
Detectable cable ties and holders for cable ties particularly suitable for pharmaceutical applications and for the food industry.
? KB-HDD | KBH-HDD

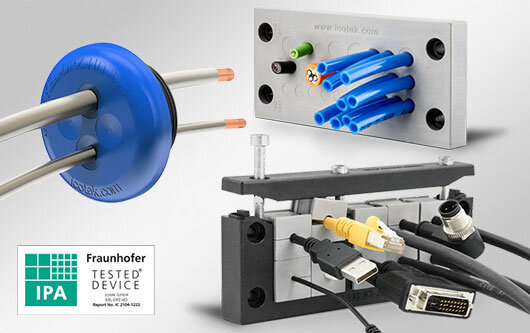

Cleanroom cable entry systems, IP54 - IP68
icotek cable entry systems for cleanrooms are suitable and certified for class 1 in accordance with ISO 14644-1
Hygienic cable entry plates for the food industry
Duration: 35 min.
More information
With the membrane based hygienic cable entry plates, up to 35 cables or pneumatic hoses can be quickly and space-efficiently routed into control cabinets, panels and machines and be sealed with certified protection classes up to IP66 / IP68. FDA compliant hygienic icotek cable entry plates are cost, space and time saving alternatives to hygienic stainless steel cable glands.
Split cable entry systems for food?technology applications
The KEL-ER-BL is a split cable entry system for cables with and without connectors.
The split cable entry frames KEL-ER-BL in the signal colour blue is preferably used in the area of food packaging and processing machines where there is no direct contact with food.
Products in this signal colour are also popular in the pharmaceutical sector.
Thanks to the injected seal and the use of single grommets, the KEL-ER-BL series achieves protection class IP65.
Hygienic design cable entry plates - very smooth surface
The hygienic cable entry plates KEL-DPZ-HD with metric threads from M32 to M63 have been developed for installation in food processing and packaging machinery. The KEL-DPU-HD is particularly characterised by its solid robust frame and the increased strain relief of the routed cables. The KEL-DPU-HD 24 matches exactly the cut-out dimensions of 24-pin standard industrial connectors.
During the development according to the Hygienic Design guidelines, care was taken to ensure that the visible sides of the cable entry plate are free of dirt-collecting recesses. The surface was kept very smooth. The value for the surface roughness (acc. to ISO 4287) is only Ra = 0,421 μm (arithmetic mean).
The outer contour has a radius of 6 mm instead of the required minimum of 3 mm.
The hygienic cable entry plates use an FDA-compliant elastomer in accordance with food approvals 1935/2004/EG and (EU) 10/2011.
In addition, hygienic icotek cable entry plates are detergent resistant (ECOLAB certified).
The hygienic cable entry plates are designed to route several cables and hoses with a diameter range of 3.2 mm to 22.2 mm and seal them acc. to IP65/66/67/68.
Hygienic ST-B-HD plugs (also available as detectable versions ST-B-HDD) can be used for sealing pierced membranes if cables have been removed.
Significant advantages over hygienic stainless steel cable glands are the significantly higher cable density and the flexibility of the cable diameter range as well as great cost savings.
Hygienic cable management in food processing and packaging
In the field of cable routing and management in hygiene critical areas icotek offers detectable cables ties and holders for cable ties. These are particularly suitable for pharmaceutical applications and for the food industry.
The cable ties and cable tie holders consist of a combination of polymer compound and metal particles, which means that they are sorted out by metal detectors, X-ray machines and visual recognition systems. This is used to detect foreign objects in food.
Well tested & certified
Approvals, compliances and standards such as IP certifications, Hygienic Design, materials compliant to FDA, 1935/2004/EG and (EU) 10/2011 as well as ECOLAB detergent resistance enable hygienic icotek cable entry plates to be real alternatives to expensive stainless steel cable glands. Certificates or declarations of conformity can be requested directly from us.
